Adsorption of Pb2+ in Aqueous Solutions by Biologically Produced Sulfur as a Novel Adsorbent
Jung-Hwan Yoon1
,
Seok Soon Jeong2
,
Kwon-Rae Kim3
,
Sung Chul Kim4
,
Jae E. Yang5
,
Hyuck Soo Kim6*
1Researcher, Department of Biological Environment, Kangwon National University, Chuncheon 24341, Korea
2Ph.D. Student, Department of Biological Environment, Kangwon National University, Chuncheon 24341, Korea
3Professor, Department of Smart Agro-Industry, Gyeongsang National University, Jinju 52725, Korea
4Professor, Department of Biological Environment and Chemistry, Chungnam National University, Daejeon 34134, Korea
5Professor, Department of Biological Environment, Kangwon National University, Chuncheon 24341, Korea
6Assistant Professor, Department of Biological Environment, Kangwon National University, Chuncheon 24341, Korea
*Corresponding Author
30 November 2021. pp. 610-621
PDF XML Citation
Abstract

In the process of biological desulfurization of gases from landfills, huge amounts of biologically produced Sulfur (BPS) were produced as by-products. A study was conducted to find out the possibility of using it as an adsorbent for Pb2+. BPS was subjected to an adsorption test in an aqueous solution in the presence of Pb2+ and compared with the removal efficiency of granular activated carbon (GAC), which is mainly used as an adsorbent for heavy metal. As a result of the Pb2+ removal experiment using BPS, it was a two-step process in which 54.5% of the initial Pb2+ was removed within 5 minutes by fast initial adsorption followed by slow adsorption. As a result of the isotherm adsorption experiment, the Pb2+ adsorption to BPS was fitted the Langmuir isotherm model, and the maximum adsorption capacity of BPS (175.4 mg g-1) was about 3 times higher than that of GAC (67.11 mg g-1). The data from XPS demonstrated that the main adsorption mechanism was the complexation of Pb2+ with the sulfide in the BPS. Therefore, it was confirmed that BPS has sufficient value to be recycled as a new adsorbent for Pb2+ removal in wastewater.

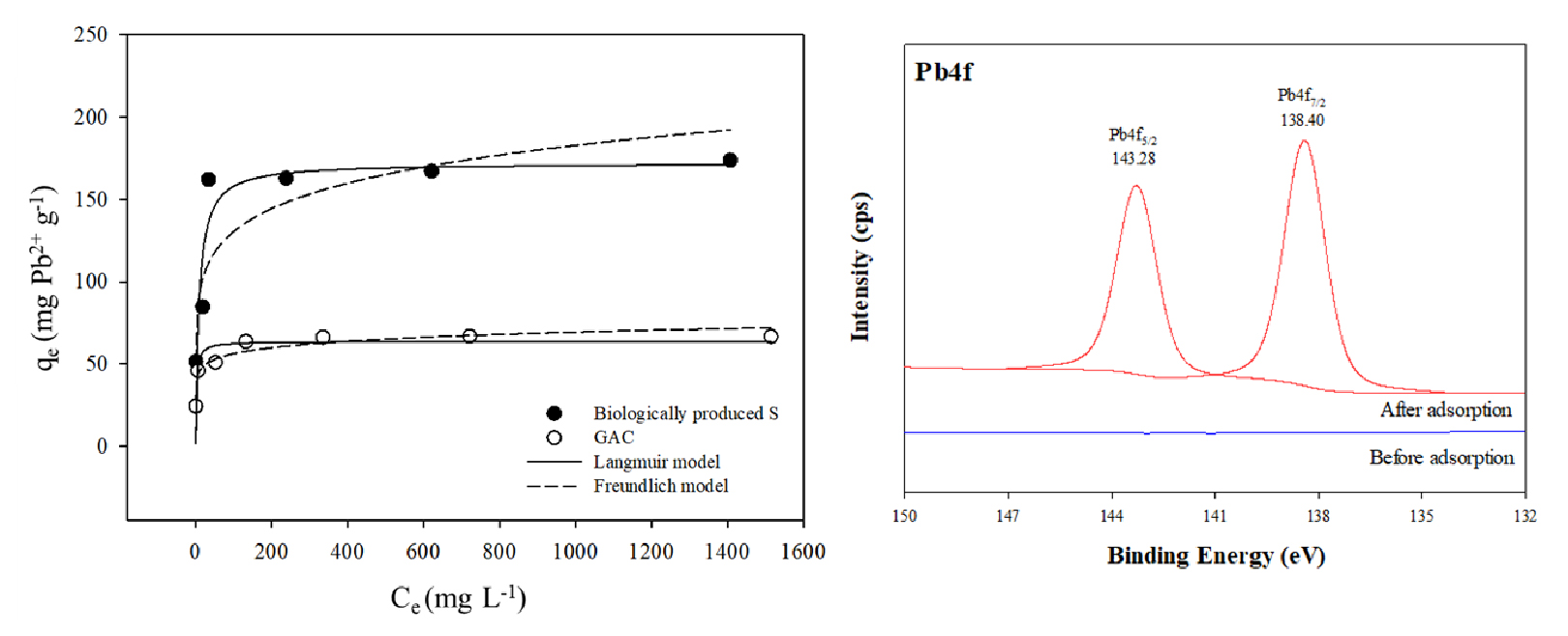

Result of adsorption isotherm test and High-resolution XPS spectra of Pb of biologically produced Sulfur after Pb adsorption.
Keywords
Activated carbon
Adsorption isotherm
Adsorption mechanism
Biologically produced sulfur
Lead
References
1
Almasi, A., M. Omidi, M. Khodadadian, R. Khamutian, and M.B. Gholivand. 2012. Lead(II) and cadmium(II) removal from aqueous solution using processed walnut shell: Kinetic and equilibrium study. Toxicol. Environ. Chem. 94(4):660-671. 10.1080/02772248.2012.671328
2
Azzam, A.M., S.T. El-Wakeel, B.B. Mostafa, and M.F. El-Shahat. 2016. Removal of Pb, Cd, Cu and Ni from aqueous solution using nano scale zero valent iron particles. J. Environ. Chem. Eng. 4(2):2196-2206. 10.1016/j.jece.2016.03.048
3
Boudrahem, F., F. Aissani-Benissad, and H. Aït-Amar. 2009. Batch sorption dynamics and equilibrium for the removal of lead ions from aqueous phase using activated carbon developed from coffee residue activated with zinc chloride. J. Environ. Manage. 90:3031-3039. 10.1016/j.jenvman.2009.04.00519447542
4
Carolin, C.F., P.S. Kumar, A. Saravanan, G.J. Joshiba, and M. Naushad. 2017. Efficient techniques for the removal of toxic heavy metals from aquatic environment: A review. J. Environ. Chem. Eng. 5:2782-2799. 10.1016/j.jece.2017.05.029
5
Chand, P. and Y.B. Pakade. 2013. Removal of Pb from water by adsorption on apple pomace: Equilibrium, kinetics, and thermodynamics studies. J. Chem. 2013:164575. 10.1155/2013/164575
6
Chiron, N., R. Guilet, and E. Deydier. 2003. Adsorption of Cu(II) and Pb(II) onto a grafted silica: Isotherms and kinetic models. Water Res. 37:3079-3086. 10.1016/S0043-1354(03)00156-8
7
Choe, S.R. 2007. Heavy metal endocrine disruptors and food. Bull. Food Technol. 20(4):3-10.
8
Choi, H.J. 2016. Behavior of Pb(II) and Cd(II) removal from aqueous solution by adsorption onto methyl-esterified sericite. KSWST J. Water Treat. 24(4):87-100. 10.17640/KSWST.2016.24.4.87
9
Choi, H.Y., J.H. Bae, Y. Hasegawa, S. An, I.S. Kim, H. Lee, and M. Kim. 2020. Thiol-functionalized cellulose nanofiber membranes for the effective adsorption of heavy metal ions in water. Carbohydr. Polym. 234:115881. 10.1016/j.carbpol.2020.11588132070504
10
Choi, S.Y., S.S. Jeong, J.E. Yang, H.S. Kim, and J.H. Cho. 2021. Efficiency and mechanism of Pb(II) removal from aqueous solutions using Cornus controversa and Quercus mongolica biomass waste. Korean J. Environ. Agric. 40(4):239-247.
11
Cholico-Gonzalez, D., N.O. Lara, A.M.F. Macedo, and J.C. Salas. 2020. Adsorption behavior of Pb(II), Cd(II), and Zn(II) onto agave bagasse, characterization, and mechanism. ACS Omega 5:3302-3314. 10.1021/acsomega.9b0338532118145PMC7045324
12
Das, R., C.D. Vecitis, A. Schulze, B. Cao, A.F. Ismail, X. Lu, J. Chen, and S. Ramakrishna. 2017. Recent advances in nanomaterials for water protection and monitoring. Chem. Soc. Rev. 46:6946-7020. 10.1039/C6CS00921B28959815
13
Dias, J.M., M.C.M. Alvim-Ferraz, M.F. Almeida, J. Rivera-Utrilla, and M. Sánchez-Polob. 2007. Waste materials for activated carbon preparation and its use in aqueous-phase treatment: A review. J. Environ. Manage. 85:833-846. 10.1016/j.jenvman.2007.07.03117884280
14
Dragan, E.S., D.F.A. Loghin, and A.I. Cocarta. 2014. Efficient sorption of Cu2+ by composite chelating sorbents based on potato starch-graft-polyamidoxime embedded in chitosan beads. ACS Appl. Mater. Interfaces 6:16577-16592. 10.1021/am504480q25191990
15
Gharabaghi, M., M. Irannajad, and A.R. Azadmehr. 2012. Selective sulphide precipitation of heavy metals from acidic polymetallic aqueous solution by thioacetamide. Ind. Eng. Chem. Res. 51:954-963. 10.1021/ie201832x
16
Hafshejani, L.D., S.B. Nasab, R.M. Gholami, M. Moradzadeh, Z. Izadpanah, S.B. Hafshejani, and A. Bhatnagar. 2015. Removal of zinc and lead from aqueous solution by nanostructured cedar leaf ash as biosorbent. J. Mol. Liq. 211:448-456. 10.1016/j.molliq.2015.07.044
17
Heo, J., B. Lee, S. Kim, J.N. Kim, and H. Lim. 2018. Techno-economic analysis of a biological desulfurization process for a landfill gas in Korea. Sep. Sci. Technol. 53:2769-2781. 10.1080/01496395.2018.1473878
18
Hua, M., S. Zhang, B. Pan, W. Zhang, and Q. Zhang. 2012. Heavy metal removal from water/wastewater by nanosized metal oxides: A review. J. Hazard. Mater. 212:317-331. 10.1016/j.jhazmat.2011.10.01622018872
19
Hydari, S., H. Sharififard, M. Nabavinia, and M.R. Parvizi. 2012. A comparative investigation on removal performances of commercial activated carbon, chitosan biosorbent and chitosan/activated carbon composite for cadmium. Chem. Eng. J. 193-194:276-282. 10.1016/j.cej.2012.04.057
20
Inyang, M.I., B. Gao, Y. Yao, Y. Xue, A. Zimmerman, A. Mosa, P. Pullammanappallila, Y.S. Ok, and X. Cao. 2016. A review of biochar as a low-cost adsorbent for aqueous heavy metal removal. Crit. Rev. Environ. Sci. Technol. 46:406-433. 10.1080/10643389.2015.1096880
21
Jang, H.M., S. Yoo, Y.K. Choi, S. Park, and E. Kan. 2018. Adsorption isotherm, kinetic modeling and mechanism of tetracycline on Pinus taeda-derived activated biochar. Bioresour. Technol. 259:24-31. 10.1016/j.biortech.2018.03.01329536870
22
Janssen, A.J.H., G. Lettinga, and A. de Keizer. 1999. Removal of hydrogen sulphide from wastewater and waste gases by biological conversion to elemental sulphur colloidal and interfacial aspects of biologically produced sulphur particles. Colloids Surf., A: Physicochem. Eng. Aspects 151:389-397. 10.1016/S0927-7757(98)00507-X
23
Jawad, A., Z. Liao, Z. Zhou, A. Khan, T. Wang, J. Ifthikar, A. Shahzad, Z. Chen, and Z. Chen. 2017. Fe-MoS4: An effective and stable LDH-based adsorbent for selective removal of heavy metals. ACS Appl. Mater. Interfaces 9:28451-28463. 10.1021/acsami.7b0720828786652
24
Khatoon, A., M.K. Uddin, and R.A.K. Rao. 2018. Adsorptive remediation of Pb(II) from aqueous media using Schleichera oleosa bark. Environ. Technol. Innovation 11:1-14. 10.1016/j.eti.2018.04.004
25
Kim, H.S., S.S. Jeong, J.G. Lee, J.H. Yoon, S.P. Lee, K.R. Kim, S.C. Kim, and J.E. Yang. 2021. Biologically produced sulfur as a novel adsorbent to remove Cd2+ from aqueous solutions. J. Hazard. Mater. 419:126470. 10.1016/j.jhazmat.2021.12647034216960
26
Kim, K.R., J.S. Park, M.S. Kim, N.I. Koo, S.H. Lee, J.S. Lee, S.C. Kim, J.E. Yang, and J.G. Kim. 2010. Changes in heavy metal phytoavailability by application of immobilizing agents and soil cover in the upland soil nearby abandoned mining area and subsequent metal uptake by red pepper. Korean J. Soil Sci. Fert. 43(6):864-871.
27
Li, J., X. Xing, J. Li, M. Shi, A. Lin, C. Xu, J. Zheng, and R. Li. 2018b. Preparation of thiol-functionalized activated carbon from sewage sludge with coal blending for heavy metal removal from contaminated water. Environ. Pollut. 234:677-683. 10.1016/j.envpol.2017.11.10229227953
28
Li, X., H. Zhou, W. Wu, S. Wei, Y. Xu, and Y. Kuang. 2015. Studies of heavy metal ion adsorption on Chitosan/Sulfydryl-functionalized graphene oxide composites. J. Colloid Interface Sci. 448:389-397. 10.1016/j.jcis.2015.02.03925746192
29
Li, Z., L. Wang, J. Meng, X. Liu, J. Xu, F. Wang, and P. Brookes. 2018a. Zeolite-supported nanoscale zero-valent iron: New findings on simultaneous adsorption of Cd(II), Pb(II), and As(III) in aqueous solution and soil. J. Hazard. Mater. 344:1-11. 10.1016/j.jhazmat.2017.09.03629028493
30
Liang, X., Y. Xu, G. Sun, L. Wang, Y. Sun, and X. Qin. 2009. Preparation, characterization of thiol-functionalized silica and application for sorption of Pb2+ and Cd2+. Colloids Surf., A: Physicochem. Eng. Aspects 349:61-68. 10.1016/j.colsurfa.2009.07.052
31
Lv, D., X. Zhou, J. Zhou, Y. Liu, Y. Li, K. Yang, Z. Lou, S.A. Baig, D. Wu, and X. Xu. 2018. Design and characterization of sulfide-modified nanoscale zerovalent iron for cadmium (II) removal from aqueous solutions. Appl. Surf. Sci. 442:114-123. 10.1016/j.apsusc.2018.02.085
32
Mazaheri, H., M. Ghaedi, S. Hajati, K. Dashtiana, and M.K. Purkaitc. 2015. Simultaneous removal of methylene blue and Pb2+ ions using ruthenium nanoparticle-loaded activated carbon: Response surface methodology. RSC Adv. 101(5):83427-83435. 10.1039/C5RA06731F
33
Naiya, T.K., A.K. Bhattacharya, and S.K. Das. 2009. Adsorption of Cd(II) and Pb(II) from aqueous solutions on activated alumina. J. Colloid Interface Sci. 333:14-26. 10.1016/j.jcis.2009.01.00319211112
34
Queiroz, L.S., L.K.C. de Souza, K.T.C. Thomaz, E.T.L. Lima, G.N. da Rocha Filho, L.A.S. do Nascimento, L.H. de Oliveira Pires, Kd.C.F. Faial, and C.E.F. da Costa. 2020. Activated carbon obtained from amazonian biomass tailings (acai seed): Modification, characterization, and use for removal of metal ions from water. J. Environ. Manage. 270:110868. 10.1016/j.jenvman.2020.11086832721313
35
Shen, Y., H. Li, W. Zhu, S.H. Ho, W. Yuan, J. Chen, and Y. Xie. 2017. Microalgal-biochar immobilized complex: A novel efficient biosorbent for cadmium removal from aqueous solution. Bioresour. Technol. 244:1031-1038. 10.1016/j.biortech.2017.08.08528847109
36
Tang, N., C.G. Niu, X.T. Li, C. Liang, H. Guo, L.S. Lin, C.W. Zheng, and G.M. Zeng. 2018. Efficient removal of Cd2+ and Pb2+ from aqueous solution with amino- and thiol-functionalized activated carbon: Isotherm and kinetics modeling. Sci. Total Environ. 635:1331-1344. 10.1016/j.scitotenv.2018.04.23629710586
37
USEPA (U.S. Environmental Protection Agency). 2004. Environmental technology verification report: NATCO Group, Inc. - Paques THIOPAQ gas purification technology. Available at: https://nepis.epa.gov/Exe/ZyPDF.cgi/P100JQ1B.PDF?Dockey=P100JQ1B.PDF.
38
Veloso, C.H., L.O. Filippov, I.V. Filippova, S. Ouvrard, and A.C. Araujo. 2020. Adsorption of polymers onto iron oxides: Equilibrium isotherms. J. Mater. Res. Technol. 9:779-788. 10.1016/j.jmrt.2019.11.018
39
Wang, T., J. Lin, Z. Chen, M. Megharaj, and R. Naidu. 2014. Green synthesized iron nanoparticles by green tea and eucalyptus leaves extracts used for removal of nitrate in aqueous solution. J. Cleaner Prod. 83:413-419. 10.1016/j.jclepro.2014.07.006
40
Wingenfelder, U., B. Nowack, G. Furrer, and R. Schulin. 2005. Adsorption of Pb and Cd by amine-modified zeolite. Water Res. 39:3287-3297. 10.1016/j.watres.2005.05.01715996705
41
Xia, Z., L. Baird, N. Zimmerman, and M. Yeager. 2017. Heavy metal ion removal by thiol functionalized aluminum oxide hydroxide nanowhiskers. Appl. Surf. Sci. 416:565-573. 10.1016/j.apsusc.2017.04.095
