2021 Vol.54, Issue 3 Preview Page

Article

Comparative Uptake and Translocation of Thallium in Selected Plant Species Grown in Artificially Contaminated Soils
Dong-Jin Kim1†
Byeong-Seok Kang2†
Jin-Ho Lee3*
1Researcher, Soil and Groundwater Research Division, National Institute of Environmental Research, Incheon 22689, Korea
2Researcher, Research and Analysis Division, Territory Environment Institute, Jeonju 54852, Korea
3Professor, Department of Bioenvironmental Chemistry, Jeonbuk National University, Jeonju 54896, Korea
*Corresponding Author
†These authors contributed equally to this work.
31 August 2021. pp. 347-358
PDF XML Citation
Abstract

Thallium (Tl) is a widely dispersed toxic element and remains in the environment. It is distributed in some soils near cement plants, abandoned mines and smelter areas in Korea ranging from 0.18 to 12.91 mg Tl kg-1. In this study, we investigated the Tl uptake by the selected food crops, Cucumis sativus and Phaseolus vulgaris, from artificially Tl-contaminated acidic and neutral soils with or without the application of diethylene triamine pentaacetic acid (DTPA). The Tl concentrations in the plant tissues increased with increasing the soil Tl concentrations. The shoot Tl concentrations of plants ranged from <0.1 mg kg-1 to 102.7 mg kg-1. The root Tl concentrations were between 8.5 mg kg-1 and 685.8 mg kg-1. The Tl uptake by cucumber plant was always higher than by bean plant, and Tl in the plant tissues were much higher in the acidic soil than in the neutral soil. However, the correlations among the shoot and root Tl concentrations, Tl-bioaccumulation factor (BAF) values, and Tl-translocation index (TLI) values for bean plant were higher than for cucumber plant. When DTPA was applied to the soils, the Tl in the plant tissues generally increased. In addition, the DTPA application in neutral soil affected positively the Tl translocation in both the plants, but in the acidic soil, it influenced only in bean plant.

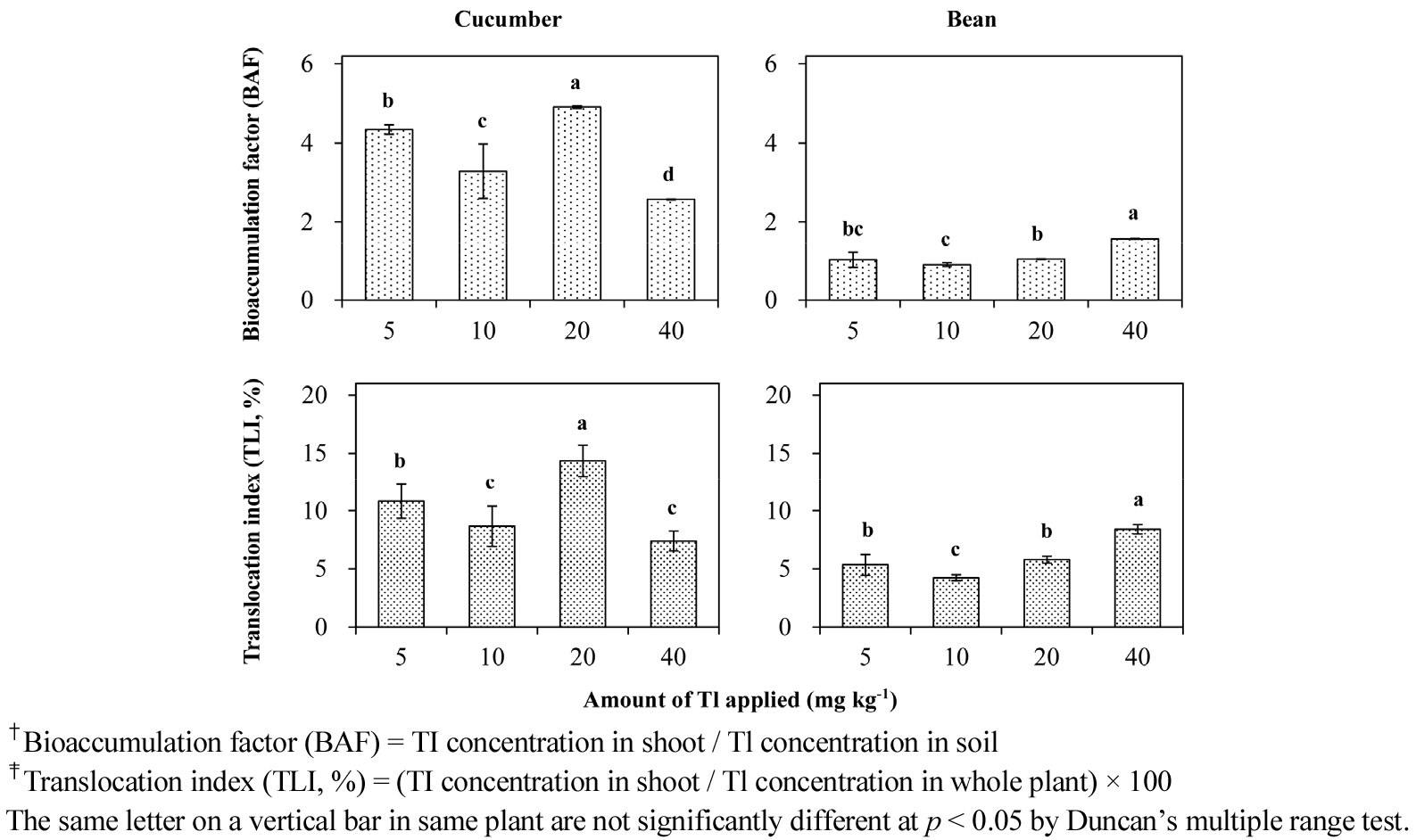

Bioaccumulation factor and translocation index of thallium in cucumber and bean grown in the artificially Tl contaminated acidic soil.
Keywords
Bean
Cucumber
DTPA
Thallium
Translocation index
References
1
Buchter, B., B. Davidoff, M.C. Amacher, C. Hinz, I.K. Iskandar, and H.M. Selim. 1989. Phosphorus dynamics during pedogenesis on serpentinite. Soil Sci. 148:370-379. 10.1097/00010694-198911000-00008
2
CCME. 2007. Canadian soil quality guidelines for the protection of environmental and human health. Canadian Council of Ministers of the Environment, Canada.
3
Cheam, V. 2001. Thallium contamination of water in Canada. Water Qual. Res. J. Can. 36:851-877. 10.2166/wqrj.2001.046
4
D’Orazio, M., B. Campanella, E. Bramanti, L. Ghezzi, M. Onor, G. Vianello, L. Vittori-Antisari, and R. Petrini. 2020. Thallium pollution in water, soils and plants from a past-mining site of Tuscany: Sources, transfer processes and toxicity. J. Geochem. Explor. 209:106434. 10.1016/j.gexplo.2019.106434
5
E&CC Canada. 2020. Draft screening assessment report for thallium and it compounds. Environment and Climate Change Canada, Health Canada, Government of Canada.
6
Hardiman, R.T., A. Banin, and B. Jacoby. 1984. The effect of soil type and degree of metal contamination upon uptake of Cd, Pb and Cu in bush beans (Phaseolus vulgaris L.). Plant Soil 81:3-15. 10.1007/BF02206889
7
Hladun, K.R., D.R. Parker, and J.T. Trumble. 2015. Cadmium, copper, and lead accumulation and bioconcentration in the vegetative and reproductive organs of Raphanus sativus: Implications for plant performance and pollination. J. Chem. Ecol. 41:386-395. 10.1007/s10886-015-0569-725845355
8
ISO 11466. 1995. Soil quality - Extraction of trace elements soluble in aqua regia. International Organization for Standardization, Geneva, Switzerland.
9
Jalali, M. and J.K. Mojahed. 2020. Assessment of the health risks of heavy metals in soils and vegetables from greenhouse production systems in Iran. Int. J. Phytorem. 22:834-848. 10.1080/15226514.2020.171591732091244
10
Jones, J.B. 1991. Plant tissue analysis in micronutrients. p. 477-521. In J.J. Mortvedt, F.R. Cox, L.M. Shuman, and R.M. Welch (eds.) Micronutrients in agriculture (2nd edition). Soil Science Society of America, Madison, Wisconsin, USA.
11
Kim, D.J., B.C. Park, B.K. Ahn, and J.H. Lee. 2016. Thallium uptake and translocation in barley and sunflower grown in hydroponic conditions. Int. J. Environ. Res. 10:575-582.
12
Kim, K.R., G. Owens, R. Naidu, and K.H. Kim. 2007. Assessment techniques of heavy metal bioavailability in soil - A critical review. Korean J. Soil Sci. Fert. 40:311-325.
13
KMOE. 2021. Soil environment conservation act. Korean Ministry of Environment, Sejong, Korea.
14
Kurz, H., R. Schulz, and V. Rîmheld. 1999. Selection of cultivars to reduce the concentration of cadmium and thallium in food and fodder plants. J. Plant Nutr. Soil Sci. 162:1-6. 10.1002/(SICI)1522-2624(199906)162:3<323::AID-JPLN323>3.0.CO;2-M
15
LaCoste, C., B. Robinson, and R. Brooks. 2001. Uptake of thallium by vegetables: Its significance for human health, phytoremediation, and phytomining. J. Plant Nut. 24:1205-1215. 10.1081/PLN-100106976
16
Lee, J.H., D.J. Kim, and B.K. Ahn. 2015. Distributions and concentrations of thallium in Korean soils determined by single and sequential extraction procedures. Bull. Environ. Contam. Toxicol. 94:756-763. 10.1007/s00128-015-1533-525836266
17
Lee, J.H., L.R. Hossner, M. Attrep Jr., and K.S. Kung. 2002. Uptake and translocation of plutonium in two plant species using hydroponics. Environ. Pollut. 117:61-68. 10.1016/S0269-7491(01)00158-0
18
Ma, L.Q., K.M. Komar, C. Tu, W. Zhang, Y. Cai, and E.D. Kenelly. 2001. A fern that hyperaccumulates arsenic. Nature 409:579-582. 10.1038/3505466411214308
19
Malo, D.D. and J.J. Doolittle. 2000. Soil particle size analysis methods. Plant Science Department, South Dakota State University, Brookings, USA.
20
Mansour, S.A., M.H. Belal, A.A.K. Abou-Arab, and M.F. Gad. 2009. Monitoring of pesticides and heavy metals in cucumber fruits produced from different farming systems. Chemosphere 75:601-609. 10.1016/j.chemosphere.2009.01.05819237184
21
Marschner, H. 1995. Mineral nutrition of higher plants (2nd edition). p. 889. Academic Press, London, UK.
22
Mestek, O., J. Polak, M. Juricek, P. Karvankova, R. Koplik, J. Santrucek, and M. Kodicek. 2007. Trace element distribution and species fractionation in Brassica napus plant. Appl. Organomet. Chem. 21:468-474. 10.1002/aoc.1237
23
Mori, S. and K.N. Nishizawa. 1987. Methionine as a dominant precursor of phytosiderophores in Graminaceae plants. Plant Cell Physiol. 28:1081-1092.
24
NAAS. 2010. Methods of soil chemical analysis. National Academy of Agricultural Science, Korea.
25
Nriagu, J.O. 1998. Thallium in the environment. John Wiley and Sons, New York, Chichester, Weinheim, Brisbane, Singapore, Toronto.
26
Pavlickova, J., J. Zbiral, M. Smatanova, P. Habarta, P. Houserova1, and V. Kuban. 2006. Uptake of thallium from artificially contaminated soils by kale (Brassica oleracea L. var. acephala). Plant Soil Environ. 52:544-549. 10.17221/3545-PSE
27
Pereira, B.F.F., C.A. de Abreu, U. Herpin, M.F. de Abreu, and R.S. Berton. 2010. hPhytoremediation of lead by jack beans on a Rhodic Hapludox amended with EDTA. Sci. Agric. 67:308-318. 10.1590/S0103-90162010000300009
28
Pettersson, O. 1976. Heavy-metal ion uptake by plants from nutrient solutions with metal ion, plant species and growth period variations. Plant Soil 45:445-459. 10.1007/BF00011706
29
Qi, W., Y. Chen, and J. Cao. 1992. Indium and thallium background content in soils in China. Int. J. Environ. Stud. 40:311-315. 10.1080/00207239208710737
30
Rao, C.R.M., M.J. Ruiz-Chancho, A. Sahuquillo, and J.F. Lopez-Sanchez. 2008. Assessment of extractants for the determination of thallium in an accidentally polluted soil. Bull. Environ. Contam. Toxicol. 81:334-338. 10.1007/s00128-008-9473-y18626564
31
Seth, C.S., V. Misra, R.R. Singh, and L. Zolla. 2011. EDTA-enhanced lead phytoremediation in sunflower (Helianthus annuus L.) hydroponic culture. Plant Soil 347:231-242. 10.1007/s11104-011-0841-8
32
Souza, L.A., F.A. Piotto, R.C. Nogueirol, and R.A. Azevedo. 2013. Use of non-hyperaccumulator plant species for the phytoextraction of heavy metals using chelating agents. Sci. Agric. 70:290-295. 10.1590/S0103-90162013000400010
33
USEPA. 2002. Supplemental guidance for developing soil screening levels for superfund sites. United States Environmental Protection Agency, Washington, DC, USA.
34
Vyas, B.N. and K.B. Mistry. 1983. Comparative uptake and translocation of plutonium and americium in six plant species. J. Nucl. Agric. Biol. 12:89-92.
35
Wang, C., Y. Chen, J. Liu, J. Wang, A. Li, Y. Zhang, and Y. Liu. 2013. Health risks of thallium in contaminated arable soils and food crops irrigated with wastewater from a sulfuric acid plant in western Guangdong province, China. Ecotoxicol. Environ. Saf. 90:76-81. 10.1016/j.ecoenv.2012.12.01423321363
36
Wick, S., B. Baeyens, M.M. Fernandes, and A. Voegelin. 2018. Thallium adsorption onto illite. Environ. Sci. Technol. 52:571-580. 10.1021/acs.est.7b0448529286655
37
Wick, S., B. Baeyens, M.M. Fernandes, J. Gottlicher, M. Fischer, N. Pfenninger, M. Plotze, and A. Voegelin. 2020. Thallium sorption and speciation in soils: Role of micaceous clay minerals and manganese oxides. Geochim. Cosmochim. Acta 288:83-100. 10.1016/j.gca.2020.07.037
38
Xian, X. 1989. Response of kidney bean to concentration and chemical form of cadmium, zinc, and lead in polluted soils. Environ. Pollut. 57:127-137. 10.1016/0269-7491(89)90005-5
39
Yeh, T.Y. and C.T. Pan. 2012. Effect of chelating agents on copper, zinc, and lead uptake by sunflower, Chinese cabbage, cattail, and reed for different organic contents of soils. J. Environ. Anal. Toxicol. 2:1-4. 10.4172/2161-0525.1000145
40
Zhou, D. and D. Liu. 1985. Chronic thallium poisoning in a rural area of Guizhou province, China. J. Environ. Health 48:14-18.
Information
  • Publisher :Korean Society of Soil Science and Fertilizer
  • Publisher(Ko) :한국토양비료학회
  • Journal Title :Korean Journal of Soil Science and Fertilizer
  • Journal Title(Ko) :한국토양비료학회 학회지
  • Volume : 54
  • No :3
  • Pages :347-358
  • Received Date :2021. 08. 19
  • Revised Date :2021. 08. 31
  • Accepted Date : 2021. 08. 31
  • DOI :https://doi.org/10.7745/KJSSF.2021.54.3.347
