2022 Vol.55, Issue 4 Preview Page

Original research article

Effect of Soil Moisture and Calcium Deficiency on Incidence of New Branch Necrosis and Tip-Burn in Jujube (Zizyphus jujuba Mill.)
Heesoon Park1*
,
Chae-Young Lee2
,
Donggeun Lee1
,
Hyo-jung Kang3
,
Jae-Eun Park1
,
Hyunman Shin4
1Local Agricultural Researcher, Jujube & Walnut Research Institute, Chungcheongbuk-do Agricultural Research & Extension Services, Boeun 28902, Korea
2Breeding & Cultivation Team leader, Jujube & Walnut Research Institute, Chungcheongbuk-do Agricultural Research & Extension Services, Boeun 28902, Korea
3Environment & Utilization Team Leader, Jujube & Walnut Research Institute, Chungcheongbuk-do Agricultural Research & Extension Services, Boeun 28902, Korea
4Jujube & Walnut Research Institute Director, Jujube & Walnut Research Institute, Chungcheongbuk-do Agricultural Research & Extension Services, Boeun 28902, Korea
*Corresponding Author
30 November 2022. pp. 488-496
PDF XML Citation
Abstract

Jujube (Ziziphus jujuba Mill.) is the most important native species of Rhamnaceae, a large cosmopolitan family, and is one of the oldest cultivated fruit trees in the world. In recent years, consumption of fresh fruit and big fruit jujube has increased. The purpose of this study was to investigate the causes and its alleviation techniques of new branch necrosis and tip-burn, which occur in jujube during the new branch growth period. As a result of analyzing the inorganic component content of leaves, the calcium content was markedly 1.48% of abnormal samples compared to 1.90% of normal samples appeared low. Also, the calcium content in a necrotic new branch was also 0.14%, which was very low compared to 0.76% in the normal sample. In addition, the incidence rate of tip-burn at -30 kPa by soil at starting point of irrigation was 16.53%, higher than 7.22% at -10 kPa. The incidence of tip-burn by calcium foliar application was 0.6%, which was very low compared to control of 4.3%. Therefore, this study suggests that the symptoms of necrosis of new branch and tip-burn that occur during the new branch growth period of Jujube are related to the calcium content in the plant and lack of soil moisture and that calcium foliar application is effective in alleviating the occurrence of these abnormal symptoms.

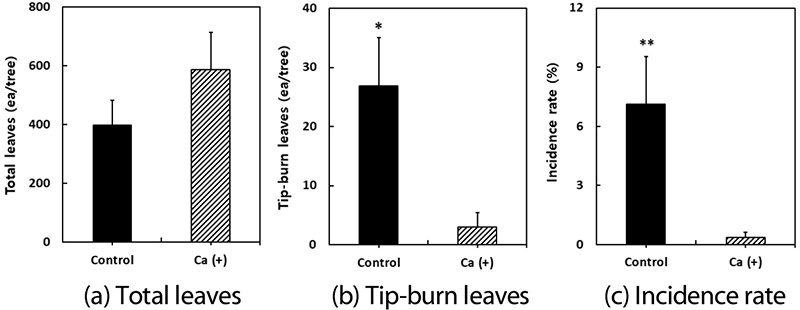

Alleviation effect of leaf tip-burn by Ca foliar application.
Keywords
Calcium foliar application
Jujube
Necrosis of new branch
Tip-burn
References
1
AGRIX. 2021. Management search service. Agriculture Integrated Information eXcellent System, Available from https://uni.agrix.go.kr (cited 2 November 2022).
2
Ashkar, S.A. and S.K. Ries. 1971. Lettuce Tipburn as Related to Nutrient Imbalance and Nitrogen Composition. J. Am. Soc. Hortic. Sci. 96(4):448-452. 10.21273/JASHS.96.4.448
3
Bangerth, F. 1979. Calcium-related physiological disorders of plants. Annu. Rev. Phytopathol. 17(1):97-122. 10.1146/annurev.py.17.090179.000525
4
Brumm, I. and M. Schenk. 1993. Influence of nitrogen supply on the occurence of calcium deficiency in field grown lettuce. In Workshop on Ecological Aspects of Vegetable Fertilization in Integrated Crop Production in the Field. 339:125-136. 10.17660/ActaHortic.1993.339.11
5
Choi, J.Y., Y.U. Yun, S.H. Choi, J.I. Lee, and Y.J. Lee. 2022. Effects of NPK fertilization on yield and fertilizer use efficiency of ‘Altari’ radish (Raphanus sativus L.). Korean J. Soil Sci. Fert. 55(2):93-101. 10.7745/KJSSF.2022.55.2.093
6
Choi, K.Y., J.H. Bae, and Y.B. Lee. 1999. Effects of Ca : K ratios in nutrient solution on photosynthesis, transpiration, growth and incidence of tipburn in butterhead and leaf lettuce. J. Bio-Env. Con. 8(1):42-48.
7
Choi, Y.S., Y.J. Kang, D.H. Kim, C.K. Lee, and S.I. Yun. 2021. Effects of chelating agent and micronutrient application on nutrient content and growth of lettuce in soils with different salinity and acidity. Korean J. Soil Sci. Fert. 54(4):578-587. 10.7745/KJSSF.2021.54.4.578
8
Clarkson, D.T. 1984. Calcium transport between tissues and its distribution in the plant. Plant Cell Environ. 7(6):449-456. 10.1111/j.1365-3040.1984.tb01435.x
9
Corriveau, J., L. Gaudreau, J. Caron, S. Jenni, and A. Gosselin. 2012. Testing irrigation, day/night foliar spraying, foliar calcium and growth inhibitor as possible cultural practices to reduce tipburn in lettuce. Can. J. Plant Sci. 92(5):889-899. 10.4141/cjps2011-242
10
Cox, E.F. and A.S. Dearman. 1981. The effect of trickle irrigation, misting and row position on the incidence of tipburn of field lettuce. Sci. Hortic. 15(2):101-106. 10.1016/0304-4238(81)90097-2
11
Edwards, J.H. and B.D. Horton. 1979. Response of peach seedlings to calcium concentration in nutrients solution. J. Am. Soc. Hort. Sci. 104(1):97-99. 10.21273/JASHS.104.1.97
12
Gibson, J.L., D.S. Pitchay, A.L. Williams-Rhodes, B.E. Whipker, P.V. Nelson, and J.M. Dole. 2007. Nutrient deficiencies in bedding plants: A pictorial guide for identification and correction. Ball Publishing, Batavia, IL, USA.
13
Hartz, T.K., P.R. Johnstone, R.F. Smith, and Cahn M.D. 2007. Soil calcium status unrelated to tipburn of romaine lettuce. HortScience 42:1681-1684. 10.21273/HORTSCI.42.7.1681
14
Jeong, S.K., J.M. Choi, K.H. Cha, H.J., Chung, and K.S. Seo. 2000. Deficiency symptom, growth characteristics, and nutrient uptake of ‘Nyoho’ strawberry as affected by controlled phosphorus concentrations in fertilizer solution. Korean J. Hortic. Sci. Technol. 41(4):345-349.
15
Kim, C.W., W. Lee, H.W. Yu, M.H. Na, H.J. Eo, M.J. Kim, and Y.S. Ahn. 2021a. High value new income crop, jujube cultivation manual. p. 1-105. National Institute of Forest Science, Seoul, Korea.
16
Kim, K.D., J.T. Suh, C.S. Kim, and S.N. Jee. 2021b. Tipburn occurrence according to soil moisture, calcium deficiency, and day/night relative humidity regime in highland Kimchi cabbage. Hortic. Sci. Technol. 738-749.
17
Kim, S.H., K.H. Lee, J.W. Lee, C.W. Kim, H.K. Oh, S.K. Lee, H.J. Kang, H.S Park, and K.H. Na. 2017. Jujube cultivation techniques. p. 1-86. Chungbuk Agricultural Research and Extension Services, Cheongju, Korea.
18
Lee, J.T., Y.M. Choi, and W.B. Kim. 1996. Highland Kimchi cabbage stable production technology system establishment. Report. National Institute of Highland Agriculture, Pyeongchang, Korea.
19
Lee, J.W., C.W. Kim, H.K. Oh, K.H. Lee, S.K. Lee, S.H. Kim, and E.Y. Hong. 2017. Effect of root pruning on growth and fruit setting in Zizyphus jujuba var. inermis (Bunge) Rehder. Korean J. Medicinal Crop Sci. 25:160-164. 10.7783/KJMCS.2017.25.3.160
20
Marschner, H. 1995. Mineral nutrition of higher plants. p. 1-889. Academic Press, San Diego, USA.
21
Maruo, T. and M. Johkan. 2020. Plant factory. p. 231-234. Academic Press, San Diego, USA. 10.1016/B978-0-12-816691-8.00015-7
22
Miao, Y., Y.T. Jiang, G.H. Zeng, and J.S. Cao. 1997. Changes of Ca2+ compartmentation and ultrastructure in inner leaves of Chinese cabbage (Brassica compasteris sp. Pekinensis olson) during the development of calcium related physiological disorder. Acta Hortic. Sin. 24(2):145-149.
23
Nam, J.I., U. Lee, and S.H. Kim. 2018. Analysis of genetic characteristic of jujube (Ziziphus jujuba Mill.) cultivated in Korea revealed by ISSR markers. J. Korean For. Soc. 107:378-384.
24
Nelson, P.V. 2013. Greenhouse operation and management. p. 1-616. Pearson Education Ltd., Harlow, UK.
25
NIAST. 2000. Methods of soil and plant analysis. National Institute of Agricultural Science and Technology, RDA, Suwon, Korea.
26
Park, Y., J.S. Kim, J.Y. Jung, S.Y. Ha, J.H. Park, and J.K. Yang. 2017. Effect of tree age and tree growth on jujube (Zizyphus jujuba var. inermis) fruit yield. J. Agric. Life Sci. 51:15-21. 10.14397/jals.2017.51.1.15
27
Pressman, E., R. Shaked, and L. Arcan. 1993. The effect of flower-inducing factors on leaf tipburn formation in Chinese cabbage J. Plant Physiol. 141:210-214. 10.1016/S0176-1617(11)80762-5
28
Rouphael, Y., M. Cardarelli, E. Rea, and G. Colla. 2012. Improving melon and cucumber photosynthetic activity, mineral composition, and growth performance under salinity stress by grafting onto Cucurbita hybrid rootstocks. Photosynthetica 50(2):180-188. 10.1007/s11099-012-0002-1
29
Saleh, S.A. 2009. Precision stressing by supplemental Ca and Bacillus subtilis FZB24 to improve quality of lettuce under protected cultivation. Acta Hortic. 824:297-302. 10.17660/ActaHortic.2009.824.35
30
Saure, M.C. 1998. Causes of the tipburn disorder in leaves of vegetables. Sci. Hortic. 76(3-4):131-147. 10.1016/S0304-4238(98)00153-8
31
Selling, S., A.H. Wissemeier, P. Cambier, and P. Van Cutsem. 2000. Calcium deficiency in potato (Solanum tuberosum ssp. tuberosum) leaves and its effects on the pectic composition of the apoplastic fluid. Physiol. Plant. 109:44-50. 10.1034/j.1399-3054.2000.100107.x
32
Tibbitts, T.W. and R.R. Rao. 1968. Light intensity and duration in the development of lettuce tipburn. Proc. Am. Soc. Hortic. Sci. 93:454-461.
33
Van den Ende, J., P. Koornneef, and C. Sonneveld. 1975. Osmotic pressure of the soil solution: Determination and effects on some glasshouse crops. Neth. J. Agric. Sci. 23(3):181-190. 10.18174/njas.v23i3.17176
Information
  • Publisher :Korean Society of Soil Science and Fertilizer
  • Publisher(Ko) :한국토양비료학회
  • Journal Title :Korean Journal of Soil Science and Fertilizer
  • Journal Title(Ko) :한국토양비료학회 학회지
  • Volume : 55
  • No :4
  • Pages :488-496
  • Received Date : 2022-11-07
  • Revised Date : 2022-11-15
  • Accepted Date : 2022-11-21
  • DOI :https://doi.org/10.7745/KJSSF.2022.55.4.488
