Assessment of Heavy metal(loid)s Pollution in Urban Soil at Street Tree Planting Sites in Chuncheon
Byung-Jun Park1
,
Chan-Gyu Lee1
,
Seok Soon Jeong2
,
Jung Eun Lim3
,
Kwon-Rae Kim4
,
Sung Chul Kim5
,
Jae E. Yang6
,
Hyuck Soo Kim7†
1Master's Degree, Department of Biological Environment, Kangwon National University, Chuncheon 24341, Korea
2PhD Student, Department of Biological Environment, Kangwon National University, Chuncheon 24341, Korea
3Researcher, Monitorong and Analysis Division, Wonju Regional Environmental office, Wonju 26461, Korea
4Professor, Department of Agronomy and Medicinal Plant Resources, Gyeongnam National University of Science and Technology, Jinju 52725, Korea
5Professor, Department of Biological Environment and Chemistry, Chungnam National University, Daejeon 34134, Korea
6Professor, Department of Biological Environment, Kangwon National University, Chuncheon 24341, Korea
7Assistant Professor, Department of Biological Environment, Kangwon National University, Chuncheon 24341, Korea
*kimhs25@kangwon.ac.kr
28 February 2021. pp. 78-86
PDF XML Citation
Abstract

Urban soil provides various ecosystem services such as biomass production, climate regulation, carbon storage, nutrient, and water cycling for human society but urban soil is threatened by pollution, compaction, sealing, and decline in organic matter. Especially urban soil near the road can be contaminated by traffic-related emissions. Thus, this study assessed the contamination level of heavy metal(loid)s in urban soil at the street tree planting sites. For this, soil samples were collected from 26 urban tree-planting sites, 23 agricultural areas, and 26 forest areas in Chuncheon city and analyzed using the standard procedures for physicochemical properties and total heavy metal(loid)s concentrations. The urban soils had low clay contents and CEC and high sand contents, indicating low retention of heavy metal(loid)s. However, urban soil Cu and Zn concentrations were higher than agricultural and forest soils and their concentrations had a strong positive linear correlation. This indicates that Cu and Zn could have a common source such as vehicles. Consequently, some traffic-related heavy metals, in particular Cu and Zn, were being accumulated in the urban soil at street tree planting sites, which may warrant some caution regarding the environment issues in the future.

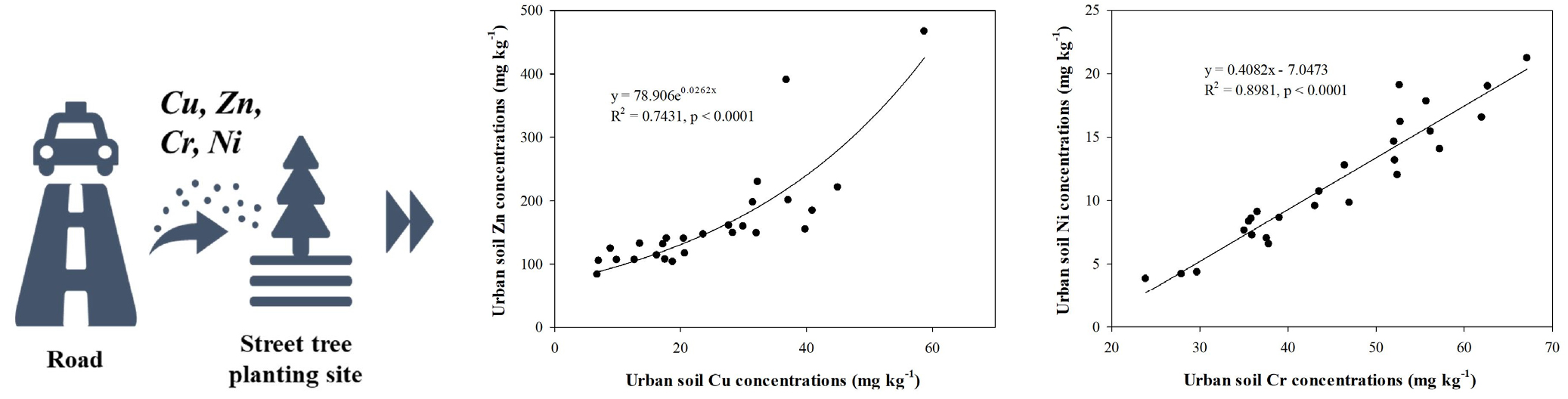

Relationship between the concentrations of Cu and Zn & Cr and Ni in urban soil at street tree planting sites.
Keywords
Contamination
Copper
Street tree
Urban soil
Zinc
References
1
Bi, C., Y. Zhou, Z. Chen, J. Jia, and X. Bao. 2018. Heavy metals and lead isotopes in soils, road dust and leafy vegetables and health risks via vegetable consumption in the industrial areas of Shanghai, China. Sci. Total Environ. 619-620:1349-1357. 10.1016/j.scitotenv.2017.11.17729734612
2
Chen, H., Y. Teng, S. Lu, Y. Wang, and J. Wang. 2015. Contamination features and health risk of soil heavy metals in China. Sci. Total Environ. 512-513:143-153. 10.1016/j.scitotenv.2015.01.02525617996
3
Christoforidis, A. and N. Stamatis. 2009. Heavy metal contamination in street dust and roadside soil along the major national road in Kavala's region, Greece. Geoderma 3-4:257-263. 10.1016/j.geoderma.2009.04.016
4
De Silva, S., A.S. Ball, T. Huynh, and S.M. Reichman. 2016. Metal accumulation in roadside soil in Melbourne, Australia: Effectof road age, traffic density and vehicular speed. Environ. Pollut. 208:102-109. 10.1016/j.envpol.2015.09.03226603093
5
Equiza, M.A., M. Calvo-Polanco, D. Cirelli, J. Señorans, M. Wartenbe, C. Saunders, and J.J. Zwiazek. 2017. Long-term impact of road salt (NaCl) on soil and urban trees in Edmonton, Canada. Urban For. Urban Green. 21:16-28. 10.1016/j.ufug.2016.11.003
6
Georgi, N.J. and K. Zafiriadis. 2006. The impact of park trees on microclimate in urban areas. Urban Ecosyst. 9:195-209. 10.1007/s11252-006-8590-9
7
Han, B.H., J.I. Kwak, S.C. Park, and J.Y. Hur. 2014. A Study on Planning of Roadside Green for Enhancing Urban Green Network. Korean J. Environ. Ecol. 28(2):128-141. 10.13047/KJEE.2014.28.2.128
8
Hong, N., Y. Guan, B. Yang, J. Zhong, P. Zhu, Y.S. Ok, D. Hou, D.C.W. Tsang, Y. Guan, and A. Liu. 2020. Quantitative source tracking of heavy metals contained in urban roaddeposited sediments. J. Hazard. Mater. 393:122362. 10.1016/j.jhazmat.2020.12236232114133
9
Jo, M., M. Lee, and K.R. Kim. 2020. Investigation of soil Cr and Ni contamination in different land uses and tracing the source of contamination. Korean J. Soil Sci. Fert. 53(4):510-518.
10
Kim, H.S., K.R. Kim, W.I. Kim, G. Owens, and K.H. Kim. 2017. Influence of road proximity on the concentrations of heavy metals in Korean urban agricultural soils and crops. Arch. Environ. Contam. Toxicol. 72:260-268. 10.1007/s00244-016-0344-y27999877
11
Ko, H.J., K.Y. Kim, H.T. Kim, C.N. Kim, and M. Umeda. 2008. Evaluation of maturity parameters and heavy metal contents in composts made from animal manure. Waste Manage. 28:813-820. 10.1016/j.wasman.2007.05.01017629693
12
Korea Forest Service. 2018. The statistics of urban forest. Korea Forest Service, Daejeon, Korea.
13
Lee, M., N.K. Kim, and K.R. Kim. 2020. Identification of automobile-derived heavy metal(loid)s possibly loaded to soils through air dust deposit. Korean J. Soil Sci. Fert. 53(4):558-565.
14
Lim, G.H., B.H. Seo, K.H. Kim, H.S. Kim, W.I. Kim, G. Owens, and K.R. Kim. 2016. Transfer functions for estimating phytoavailable Cd and Pb in metal contaminated paddy and upland soils: Implications for phytoavailability based land management. Geoderma 270:89-97. 10.1016/j.geoderma.2015.11.021
15
NAS. 2000. Method of soil and plant analysis. National Institute of Agricultural Science & Technology. Suwon, Korea.
16
NAS. 2010. Method of soil chemical properties analysis. National Institute of Agricultural Science & Technology. Suwon, Korea.
17
Nazarpour, A., M.J. Watts, A. Madhani, and S. Elahi. 2019. Source, spatial distribution and pollution assessment of Pb, Zn, Cu, and Pb, isotopes in urban soils of Ahvaz City, a semi-arid metropolis in southwest Iran. Sci. Rep. 9:5349. 10.1038/s41598-019-41787-w30926876PMC6441049
18
Nelson, D.W. and L.E. Sommers. 1996. Total carbon, organic carbon, and organic matter. pp.961-1009. In D.L. Sparks et al. (ed.) Methods of soils analysis, Part 3-Chemical methods. SSSA Books Series 5, Madison, WI.
19
Nicholson, F.A., B.J. Chambers, J.R. Williams, and R.J. Unwin. 1999. Heavy metal contents of livestock feeds and animal manures in England and Wales. Bioresour. Technol. 70:23-31. 10.1016/S0960-8524(99)00017-6
20
Salmond, J.A., M. Tadaki, S. Vardoulakis, K. Arbuthnott, A. Coutts, M. Demuzere, K.N. Dirks, C. Heaviside, S. Lim, H. Macintyre, R.N. Mclnnes, and B.W. Wheeler. 2016. Health and climate related ecosystem services provided by street trees in the urban environment. Enviorn. Health 15:36. 10.1186/s12940-016-0103-626961700PMC4895605
21
Vailshery, L.S., M. Jaganmohan, and H. Nagendra. 2013. Effect of street trees on microclimate and air pollution in a tropical city. Urban For. Urban Green. 12:408-415. 10.1016/j.ufug.2013.03.002
22
Vega, F.A., M.L. Andrade, and E.F. Covelo. 2010. Influence of soil properties on the sorption and retention of cadmium, copper and lead, separately and together, by 20 soil horizons: Comparison of linear regression and tree regression analyses. J. Hazard. Mater. 174:522-533. 10.1016/j.jhazmat.2009.09.08319811872
23
Werkenthin, M., B. Kluge, and G. Wessolek. 2014. Metals in European roadside soils and soil solution - A review. Environ. Pollut. 189:98-110. 10.1016/j.envpol.2014.02.02524657603
24
Yang, J.L. and G.L. Zhang. 2011. Water infiltration in urban soils and its effects on the quantity and quality of runoff. J. Soils Sediments 11:751-761. 10.1007/s11368-011-0356-1
25
Yang, J.L. and G.L. Zhang. 2015. Formation, characteristics and eco-environmental implications of urban soils - A review. Soil Sci. Plant Nutr. 61:30-46. 10.1080/00380768.2015.1035622
26
Yoon, J.K., D.H. Kim, T.S. Kim, J.G. Park, I.R. Chung, and J.H. Kim. 2009. Evaluation on natural background of the soil heavy metals in Korea. J. Soil Groundw. Environ. 14(3):32-39.
27
Zhang, W., G.O. Brown, and D.E. Storm. 2008. Enhancement of heavy metals retention in sandy soil by amendment with fly ash. Trans. ASABE. 51:1247-1254. 10.13031/2013.25241
