All Issue

2021 Vol.54, Issue 1 Preview Page

Original research article

Comparing Heavy Metal Pollution in Agricultural Field Located at the Industrial Complex with Calculation of Pollution Index
Young Kyu Hong1
,
Jin Wook Kim2
,
Sung Chul Kim3†
1Ph.D. Candidate, Department of Bio-Environmental Chemistry, Chungnam National University, Daejeon 34134, Korea
2Master's Degree, Department of Bio-Environmental Chemistry, Chungnam National University, Daejeon 34134, Korea
3Professor, Department of Bio-Environmental Chemistry, Chungnam National University, Daejeon 34134, Korea
*sckim@cnu.ac.kr
28 February 2021. pp. 10-19
PDF XML Citation
Abstract

Heavy metal pollution in agricultural field has been concerned because of crop safety. The main purpose of this study was to evaluate heavy metal pollution in agricultural field by comparing two groups. The first group (A) was agricultural field where no industrial complex is located within 2 km radius and the second group (B) was that industrial complex is located within 2 km radius. A total of 330 soil samples in Chungbok provinces of Korea. Heavy metal concentration was measured in both groups and pollution index was calculated based on measured heavy metal concentration and threshold value. Result showed that chemical properties of both groups were within optimum range of agricultural field set by national institute of agricultural science in Korea. Heavy metal concentration such as Cd and Pb was generally higher in group B compared to group A due to impact of industrial complex. However, concentration of As and Cu was higher in group A compared to B and we could assumed that abandoned mine located near at the sampling site in group A and over use of compost might be the source of higher heavy metal concentration in group A. Soil pollution index calculation showed that group B (0.21) was higher than group A (0.19) although no heavy metal species were exceeded threshold value in Korea. Among other chemical properties, soil organic matter and available phosphorus concentration were highly correlated with soil pollution index indicating that management of compost could be utilized to decrease heavy metal concentration in soil.

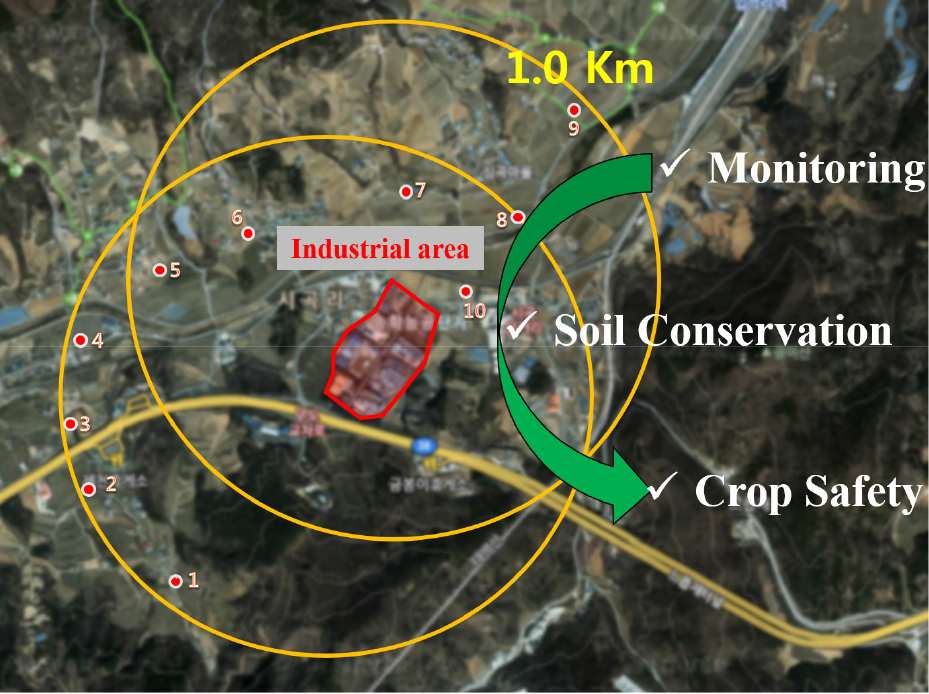

Monitoring of heavy metal in agricultural field located near at the industrial complex.
Keywords
Arable field
Compost
Heavy metals
Pollution index
Soil organic matter
References
1
Acosta, J.A., A. Faz, S. Martínez-Martínez, and J.M. Arocena. 2011. Enrichment of metals in soils subjected to different land uses in a typical Mediterranean environment (Murcia city, southeast Spain). Applied Geochemistry. 26(3):405-414. 10.1016/j.apgeochem.2011.01.023
2
Aelion, C.M., H.T. Davis, S. McDermott, and A.B. Lawson. 2009. Soil metal concentrations and toxicity: associations with distances to industrial facilities and implications for human health. Sci. Total Environ. 407:2216-2223. 10.1016/j.scitotenv.2008.11.03319155049PMC2676061
3
Berenguer, P., S. Cela, F. Santiveri, J. Boixadera, and J. Lloveras. 2008. Copper and zinc soil accumulation and plant concentration in irrigated maize fertilized with liquid swine manure. Agronomy Journal. 100(4):1056-1061. 10.2134/agronj2007.0321
4
Brock, E.H., Q.M. Ketterings, and M. McBride. 2006. Copper and zinc accumulation in poultry and dairy manure-amended fields. Soil Science. 171(5):388-399.
5
Choi, W.S., Y.K. Hong, K.J. Min, K.J. Kim, and S.C. Kim. 2017. Evaluating soil respiration as indicator of heavy metal pollution in agricultural field. Korean J. Soil Sci. Fert. 50(5)472-481.
6
Hong, C.O., J. Gutierrez, S. W. Yun, Y. B. Lee, C. Yu, and P. J. Kim. 2007. Heavy metal contamination of arable soil and corn plant in the vicinity of a zinc smelting factory and stabilization by liming. Arch. Environ. Contam. Toxicol. 56:190-200. 10.1007/s00244-008-9195-518704256
7
Hu, Y., X. Liu, J. Bai, K. Shin, E.Y. Zeng, and H. Cheng. 2013. Assessing heavy metal pollution in the surface soils of a region that had undergone three decades of intense industrialization and urbanization. Environmental Science and Pollution Research. 20(9):6150-6159. 10.1007/s11356-013-1668-z23546857
8
Jeong, S.S., H.S. Kim, S.P. Lee, S.Y. Choi, J.E. Lee, S.C. Kim, and J.E. Yang. 2020. Comparison of pollution indicies in assessing the heavy metal(loid)s pollution of arable soils adjacent to industrial complex in Gyeonggi-do. Korean J. Soil Sci. Fert. 53(4):614-625.
9
Jeong, T.U., E.J. Cho, J.E. Jeong, H.S. Ji, K.S. Lee, P.J. Yoo, G.G. Kim, J.Y. Choi, J.H. Park, S.H. Kim, J.S. Heo, and D.C. Seo. 2015. Soil contamination of heavy metals in national industrial complexes, Korea. Korean J. Environ. Agric. 34(2):69-76. 10.5338/KJEA.2015.34.2.19
10
Jung, G.B., W.I. Kim, J.S. Lee, J.D. Shin, J.H. Kim, and S.G. Yun. 2004a. Assessment on the content of heavy metal in orchard soils in middle part of Korea. Korean J. Environ. Agric. 23(1), 15-21. 10.5338/KJEA.2004.23.1.015
11
Jung, M.C., M.Y. Jung, and Y.W. Choi. 2004b. Environmental assessment of heavy metals around abandoned metalliferous mine in Korea. Korea Soci. of Econ. and Environ. Geol. 37(1):21-33.
12
Jung. G.B., K.Y. Jung, G.H. Cho, B.G. Jung, and K.S. Kim. 1997. Heavy metal contents in soils and vegetables in the plastic film house. Korean J. Soil Sci. Fert. 30(2), 152-160.
13
KICOX. 2019. National industrial complex status statistical table(19.4 Quarter). Korea Industrial Complex Corporation, Korea.
14
Kim, B.Y., K.S. Kim, and J.K. Cho. 1982. Survey on heavy metals in paddy soil and brown rice in Korea. Ann. Report of Agr. Exp. Research 24, 51-57.
15
Kim, B.Y., K.S. Kim, J.S. Lee, and S.H. Yoo. 1993. Survey on the natural heavy metal contents in fruits and orchard soils in Korea, Korean J. Soil Sci. Fert. 35(2), 280-290.
16
Kim, J.Y., K.W. Kim, J.S. Ahn, I. Ko, and C.H. Lee. 2005. Investigation and risk assessment modeling of As and other heavy metals contamination around five abandoned metal mines in Korea. Environ. Geochemistry and Health. 27:193-203. 10.1007/s10653-005-0127-216003587
17
Kim, S., H.J. Kwon, H.K. Cheong, K. Choi, J.Y. Jang, W.C. Jeong, D.S. Kim, S. Yu, Y.W. Kim, K.Y. Lee, S.O. Yang, I.J. Jhung, W.H. Yang, and Y.C. Hong. 2008. Investigation on health effects of an abandoned metal mine. Korean J. Medical Sci. 23:452-458. 10.3346/jkms.2008.23.3.45218583882PMC2526532
18
Kim, Y.G., H.H. Lee, H.J. Park, and C.O. Hong. 2018. Assessment of heavy metal(loid)s pollution in arable soils near industrial complex in Gyeongsang provices of South Korea. Korean J. Soil Sci. Fert. 51(2):128-141.
19
Kloke, A. 1979. Content of arsenic, cadmium. chromium, fluorine, lead, mercury, and nickel in plants grown on contaminated soils, United Nations-ECE symposium, Geneva. 51-53.
20
Ko, H.J. and K.Y. Kim. 2016. Heavy metals contents and chemical characteristics in compost from animal manures. Korean J. Soc. Occupational and Environ. Hygiene. 26(2):170-177. 10.15269/JKSOEH.2016.26.2.170
21
Lee, H.H., K.K. Kim, Y.B. Lee, Y.S. Kwak, B.G. Ko, S.B. Lee, C.K. Shim, and C.O. Hong. 2017. Comparison of heavy metal(loid)s contamination of soil between conventional and organic fruit farms. Korean J. Soil Sci. Fert. 50(5):401-408. 10.7745/KJSSF.2017.50.4.318
22
Lee, S.W., B.T. Lee, J.Y. Kim, K.W. Kim, and J.S. Lee. 2006. Human risk assessment for heavy metals and As contamination in the abandoned metal mine areas, Korea. Environmental Monitoring and Assessment. 119:233-244. 10.1007/s10661-005-9024-516741824
23
Lee, T.G., M.S. Kong, E.J. Lee, H.I. Jung, Y.H. Kim, G.B. Jung, J.E. Yang, S.C. Kim, G.I. Kim, G.R. Kim, and M.J. Chae. 2019. Assessment of heavy metal concentrations in the arable soils near industrial complexes in Gangwon, Chungnam, Jeonnam, and Gyeongnam provinces of South Korea. Korean J. Soil Sci. Fert. 52(4):541-550.
24
Li, M.S. and S.X. Yang. 2008. Heavy metal contamination in soils and phytoaccumulation in a manganese mine wasteland, South China. Air Soil Water Res. 1:31-41. 10.4137/ASWR.S2041
25
Liu, C.P., C.L. Luo, Y. Gao, F.B. Li, L.W. Lin, C.A. Wu, and X.D. Li. 2010. Arsenic contamination and potential health risk implications at an abandoned tungsten mine, southern China. Envrion. Pollution. 158:820-826. 10.1016/j.envpol.2009.09.02919910093
26
Liu, H., A. Probst, and B. Liao. 2005. Metal contamination of soils and crops affected by the Chenzhou lead/zinc mine spill (Hunan, China). Sci. Total Environ. 339:153-166. 10.1016/j.scitotenv.2004.07.03015740766
27
MAFRA. 1998. Fostering eco-friendly agriculture. Ministry of Agriculture, Food and Rural Affairs, Korea.
28
Martley, E., B.L. Gulson, and H.-R. Pfeifer. 2004. Metal concentrations in soils around the copper smelter and surrounding industrial complex of Port Kembal, NSW, Australia. Sci. of the total Environ. 325:113-127. 10.1016/j.scitotenv.2003.11.01215144782
29
Min, K.J., Y.K. Hong, W.S. Choi, D.B. Kim, and S.C. Kim. 2016. Assessment of heavy metal (loid) pollution using pollution index in agricultural field adjacent to industrial area. Korean J. Soil Sci. Fert. 49(6):768-775. 10.7745/KJSSF.2016.49.6.768
30
MOE. 1996. Soil environment conservation act. Ministry of Environment, Korea.
31
MOE. 2016. Standard analysis methods for soil pollution. Ministry of Environment, Korea.
32
NAAS (National Institute of Agricultural Sciences). 2010. Soil chemical analysis method. National Academy of Agricultural Science, RDA, Suwon, Korea.
33
Nadal, M., M. Mari, M. Schugmacher, and J.L. Domingo. 2009. Multi-compartmental environmental surveillance of a petrochemical area: levels of micropollutants. Environment International. 35(2):227-235. 10.1016/j.envint.2008.06.00118602160
34
Naidu, R., N.S. Bolan, R.S. Kookana, and K.G. Tiller. 1994. Ionic strength and pH effects on the adsorption of cadmium and the surface charge of soils. Eur. J. Soil Sci. 45:419-429. 10.1111/j.1365-2389.1994.tb00527.x
35
Oh, S.J., S.C. Kim, T.H. Kim, K.H. Yeon, J.S. Lee, and J.E. Yang. 2011. Determining kinetic parameters and stabilization efficiency of heavy metals with various chemical amendment. Korean J. Soil Sci. Fert. 44(6):1064-1070. 10.7745/KJSSF.2011.44.6.1063
36
Park, J.H., K.A. Kwon, E.H. Jung, J.K. Kim, J.Y. Kim, and J.K. Oh. 2017. A study on soil contamination investigation of farmland around industrial areas in northern Gyeonggi province. J. Environ. Health Sci. 43(5):393-400. 10.5668/JEHS.2017.43.5.393
37
Ra, K.T., J.K. Kim, J.M. Lee, S.Y. Lee, E.S. Kim, and K.T. Kim. 2014. Characteristics and risk assessment of heavy metals in the stormwater runoffs from industrial region discharged into Shihwa lake. Korean J. Marine Environ. and Energy. 17(4):283-296. 10.7846/JKOSMEE.2014.17.4.283
38
Shin, J.H., J.H. Yu, Y.S. Jeong, S.Y. Kim, S.M. Koh, and G.S. Park. 2016. Spectral characteristics of heavy metal contaminated soils in the vicinity of Boksu mine. J. Miner. Soc. Korea. 29(3):89-101. 10.9727/jmsk.2016.29.3.89
39
Vousta, D., A. Grimanis, and C. Samara. 1996. Trace elements in vegetables grown in an industrial area in realtion to soil and air particulate matter. Envrionmental Pollution. 94(3):325-335. 10.1016/S0269-7491(96)00088-7
40
Yusuf, A.A., T.O. Arowolo, and O. Bamgbose. 2002. Cadmium, copper and nickel levels in vegetables from industrial and residential areas of LAGOS city, Nigeria. Global J. Environ. Sciences. 1(1):1-6. 10.4314/gjes.v1i1.2390
41
Zhuang, P., M.B. McBride, H. Xia, N. Li, and Z. Li. 2009. Health risk from heavy metals via consumption of food crops in the vicinity of Dabaoshan mine, south China. Sci. Total Envrion. 407:1551-1561. 10.1016/j.scitotenv.2008.10.06119068266
Information
  • Publisher :Korean Society of Soil Science and Fertilizer
  • Publisher(Ko) :한국토양비료학회
  • Journal Title :Korean Journal of Soil Science and Fertilizer
  • Journal Title(Ko) :한국토양비료학회 학회지
  • Volume : 54
  • No :1
  • Pages :10-19
  • Received Date : 2021-01-05
  • Revised Date : 2021-01-20
  • Accepted Date : 2021-01-20
  • DOI :https://doi.org/10.7745/KJSSF.2021.54.1.010
