2020 Vol.53, Issue 4 Preview Page

Review

Trends of Lysimeter Studies to Investigate Nutrient Leaching Loss
Yang-Min Kim1
,
Chan-Wook Lee2
,
Ye-Jin Lee2†
1Post-doctoral Fellow, Division of Soil and Fertilizer, National Institute of Agricultural Sciences, RDA, Wanju 55365, Korea
2Research Scientist, Division of Soil and Fertilizer, National Institute of Agricultural Sciences, RDA, Wanju 55365, Korea
*leeyj418@korea.kr
30 November 2020. pp. 677-686
PDF XML Citation
Abstract

Lysimeter is used to monitor water and nutrient transport through soil profiles under minimum disturbance conditions. In this study, we focused on the researches about nutrient leaching loss using a lysimeter in the world. We aimed at reviewing key studies and planning further research directions using the weighable lysimeters in Korea. In response to climate changes, environmental issues, and policies for sustainable agriculture, the experiments using a lysimeter were performed to better understand the nutrient leaching loss in the soils. The research topics were about crop rotation, soil amendment, nitrification inhibitors and what were better practices for reducing nutrient leaching including nitrogen. In addition, some researches focused on developing optimal models to predict the nutrient leaching loss in the soils that have a variety of environments. Current study suggests that the studies of the nutrient leaching loss combined with water dynamics using weighable lysimeters in Korea are to be fostered so that they may provide scientific guidelines on the issues and policies such as sustainable agriculture, climate change, fertilizer recommendation, and nutrient balance.

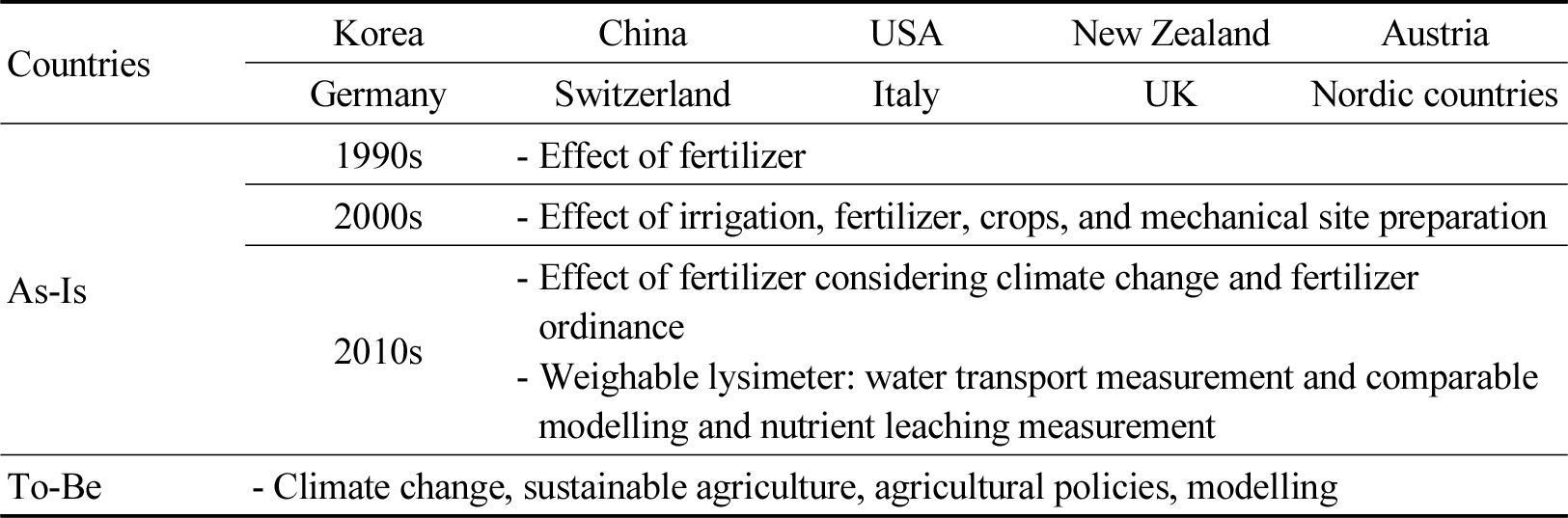

Lysimeter research topics on nutrient leaching in Korea and around the world.
Keywords
Lysimeter
Nutrient leaching loss
Modelling
References
1
Allen, S.C., S. Jose, P.K.R. Nair, B.J. Brecke, P. Nkedi-Kizza, and C.L. Ramsey. 2004. Safety-net role of tree roots: evidence from a pecan (Carya illinoensis K. Koch)-cotton (Gossypium hirsutum L.) alley cropping system in the southern United States. For. Ecol. Manag. 192(2-3):395-407. 10.1016/j.foreco.2004.02.009
2
Bergeron, M., S. Lacombe, R.L. Bradley, J. Whalen, A. Cogliastro, M.-F. Jutras, and P. Arp. 2011. Reduced soil nutrient leaching following the establishment of tree-based intercropping systems in eastern Canada. Agroforest. Syst. 83:321-330. 10.1007/s10457-011-9402-7
3
Di, H.J. and K.C. Cameron. 2004. Treating grazed pasture soil with a nitrification inhibitor, eco‐n™, to decrease nitrate leaching in a deep sandy soil under spray irrigation-a lysimeter study. New Zealand J. Agric. Res. 47(3):351-361. 10.1080/00288233.2004.9513604
4
Di, H.J., K.C. Cameron, J.P. Shen, J.Z. He, and C.S. Winefield. 2009. A lysimeter study of nitrate leaching from grazed grassland as affected by a nitrification inhibitor, dicyandiamide, and relationships with ammonia oxidizing bacteria and archaea. Soil Use Manag. 25(4):454-461. 10.1111/j.1475-2743.2009.00241.x
5
Drury, C.F., C.S. Tan, J.D. Gaynor, T.O. Oloya, and T.W. Welacky. 1996. Influence of controlled drainage-subirrigation on surface and tile drainage nitrate loss. J. Environ. Qual. 25:317-324. 10.2134/jeq1996.00472425002500020016x
6
Fan, J., J. Xiao, D. Liu, G. Ye, J. Luo, D. Houlbrooke, S. Laurenson, J. Yan, L. Chen, J. Tian, and W. Ding. 2017. Effect of application of dairy manure, effluent and inorganic fertilizer on nitrogen leaching in clayey fluvo-aquic soil: A lysimeter study. Sci. Total Environ. 592:206-214. 10.1016/j.scitotenv.2017.03.06028319708
7
Fu, J., R. Gasche, N. Wang, H. Lu, K. Butterbach-Bahl, and R. Kiese. 2017. Impacts of climate and management on water balance and nitrogen leaching from montane grassland soils of S-Germany. Environ. Pollut. 229:119-131. 10.1016/j.envpol.2017.05.07128582675
8
Heinlein, F., C. Biernath, C. Klein, C. Thieme, and E. Priesack. 2017. Evaluation of simulated transpiration from maize plants on lysimeters. Vadose Zone J. 16(1):1-16. 10.2136/vzj2016.05.0042
9
Ji, X.-H., S.X. Zheng, L.-H. Shi, and Z.-B. Liu. 2011. Systematic studies of nitrogen loss from paddy soils through leaching in the Dongting Lake area of China. Pedosphere, 21(6):753-762. 10.1016/S1002-0160(11)60179-3
10
Jia, X., L. Shao, P. Liu, B. Zhao, L. Gu, S. Dong, S.H. Bing, J. Zhang, and B. Zhao. 2014. Effect of different nitrogen and irrigation treatments on yield and nitrate leaching of summer maize (Zea mays L.) under lysimeter conditions. Agric. Water Manag. 137:92-103. 10.1016/j.agwat.2014.02.010
11
Kim, D.J., J.H. Ok, S.O. Hur, and S.A. Hwang. 2020. Effects of precipitation on soil water and evapotranspiration in differently-textured paddy soils during non-cultivated period: a weighable lysimeter study. Korean J. Soil Sci. Fert. 53(3):309-322.
12
Klammler, G. and J. Fank. 2014. Determining water and nitrogen balances for beneficial management practices using lysimeters at Wagna test site (Austria). Sci. Total Environ. 499:448-462. 10.1016/j.scitotenv.2014.06.00924982000
13
Knight, D., P.W. Elliott, J.M. Anderson, and D. Scholefield. 1992. The role of earthworms in managed, permanent pastures in Devon, England. Soil Biol. Biochem. 24(12):1511-1517. 10.1016/0038-0717(92)90142-K
14
Lee, S.-B., Y.-M. Kim, Y.-J. Lee, Y.-S. Song, C.-H. Ryu, D.-B. Lee, C.-W. Lee, C.-H. Lee, and J. Sung. 2019. Effect of optimum nutrient management on productivity and nitrogen balance in rice cultivation: a review, Korean J. Soil Sci. Fert. 52(4):559-566.
15
Lee, Y.J., J.H. Ok, S.B. Lee, J.K. Sung, Y.S. Song, and D.B. Lee. 2018. Nitrogen leaching and balance of soils grown with cabbage in weighing lysimeter. Korean J. Environ. Agric. 37(3):166-171. 10.5338/KJEA.2018.37.3.23
16
Lee, Y.J., K.H. Han, S.B. Lee, J.K. Sung, Y.S. Song, and D.B. Lee. 2017. Nutrient leaching and crop uptake in weighing lysimeter planted with soybean as affected by water management. Korean J. Environ. Agric. 36(3):147-153. 10.5338/KJEA.2017.36.3.30
17
Li, Y., J. Li, L. Gao, and Y. Tian. 2018. Irrigation has more influence than fertilization on leaching water quality and the potential environmental risk in excessively fertilized vegetable soils. PloS One, 13(9):e0204570. 10.1371/journal.pone.0204570
18
Malcolm, B.J., J.L. Moir, K.C. Cameron, H.J. Di, and G.R. Edwards. 2015. Influence of plant growth and root architecture of Italian ryegrass (Lolium multiflorum) and tall fescue (Festuca arundinacea) on N recovery during winter. Grass Forage Sci. 70(4):600-610. 10.1111/gfs.12157
19
Maxwell, T.M., R.D. McLenaghen, G.R. Edwards, H.J. Di, and K.C. Cameron. 2019. Italian ryegrass swards reduce N leaching via greater N uptake and lower drainage over perennial ryegrass cultivars varying in cool season growth rates. New Zealand J. Agric. Res. 62(1):69-82. 10.1080/00288233.2018.1426615
20
Meissner, R., J. Seeger, and H. Rupp. 2002. Effects of agricultural land use changes on diffuse pollution of water resources. Irrig. Drain. 51(2):119-127. 10.1002/ird.46
21
Moir, J.L., K.C. Cameron, and H.J. Di. 2007. Effects of the nitrification inhibitor dicyandiamide on soil mineral N, pasture yield, nutrient uptake and pasture quality in a grazed pasture system. Soil Use Manag. 23(2):111-120. 10.1111/j.1475-2743.2006.00078.x
22
Ok, J.H., K.H. Han, Y.J. Lee, Y.S. Zhang, H.R. Cho, S.A. Hwang, S.S. Kim, J.H. Lee, and D.J. Kim. 2018. Water balance for Chinese cabbage in spring season with different upland soils evaluated using weighable lysimeters. Korean J. Soil Sci. Fert. 51(4):555-563.
23
Ok, J.H., K.H. Han, Y.S. Zhang, H.R. Cho, S.A. Hwang, and D.J. Kim. 2019. Weighable lysimeter study for water balance estimation of Chinese cabbage in the fall season. Korean J. Soil Sci. Fert. 52(4):325-333.
24
Piirainen, S., L. Finér, H. Mannerkoski, and M. Starr. 2007. Carbon, nitrogen and phosphorus leaching after site preparation at a boreal forest clear-cut area. Forest Ecol. Manag. 243(1):10-18. 10.1016/j.foreco.2007.01.053
25
Piirainen, S., L. Finer, H. Mannerkoski, and M. Starr. 2009. Leaching of cations and sulphate after mechanical site preparation at a boreal forest clear-cut area. Geoderma 149(3-4):386-392. 10.1016/j.geoderma.2009.01.003
26
Pohlert, T., J.A. Huisman, L. Breuer, and H.G. Frede. 2007. Integration of a detailed biogeochemical model into SWAT for improved nitrogen predictions-Model development, sensitivity, and GLUE analysis. Ecol. Modell. 203(3-4):215-228. 10.1016/j.ecolmodel.2006.11.019
27
Saarijärvi, K., P. Virkajärvi, and H. Heinonen-Tanski. 2007. Nitrogen leaching and herbage production on intensively managed grass and grass-clover pastures on sandy soil in Finland. Eur. J. Soil Sci. 58(6):1382-1392. 10.1111/j.1365-2389.2007.00940.x
28
Saarijärvi, K., P. Virkajärvi, H. Heinonen-Tanski, and I. Taipalinen. 2004. N and P leaching and microbial contamination from intensively managed pasture and cut sward on sandy soil in Finland. Agric. Ecosyst. Environ. 104(3):621-630. 10.1016/j.agee.2003.12.015
29
Shepherd, M.A. and G. Bennett. 1998. Nutrient leaching losses from a sandy soil in lysimeters. Commun. Soil Sci. Plant Anal. 29(7-8):931-946. 10.1080/00103629809369997
30
Sorrenti, G. and M. Toselli. 2016. Soil leaching as affected by the amendment with biochar and compost. Agric. Ecosyst. Environ. 226:56-64. 10.1016/j.agee.2016.04.024
31
Syvertsen, J.P., M.L. Smith, and B.J. Boman. 1993. Tree growth, mineral nutrition and nutrient leaching losses from soil of salinized citrus. Agric. Ecosyst. Environ. 45(3-4):319-334. 10.1016/0167-8809(93)90080-9
32
Ulén, B. 1999. Leaching and balances of phosphorus and other nutrients in lysimeters after application of organic manures or fertilizers. Soil Use Manag. 15(1):56-61. 10.1111/j.1475-2743.1999.tb00064.x
33
Ulén, B., A.K. Eriksson, and A. Etana. 2013. Nutrient leaching from clay soil monoliths with variable past manure inputs. J. Plant Nutr. Soil Sci. 176(6):883-891. 10.1002/jpln.201200412
34
Valkama, E., R. Lemola, H. Känkänen, and E. Turtola. 2015. Meta-analysis of the effects of undersown catch crops on nitrogen leaching loss and grain yields in the Nordic countries. Agric. Ecosyst. Environ. 203:93-101. 10.1016/j.agee.2015.01.023
35
Winton, K. and J.B. Weber. 1996. A review of field lysimeter studies to describe the environmental fate of pesticides. Weed Technol. 202-209. 10.1017/S0890037X00045929
36
Woods, R.R., K.C. Cameron, G.R. Edwards, H.J. Di, and T.J. Clough. 2016. Effects of forage type and gibberellic acid on nitrate leaching losses. Soil Use Manag. 32(4):565-572. 10.1111/sum.12297
37
Woods, R.R., K.C. Cameron, G.R. Edwards, H.J. Di, and T.J. Clough. 2018. Reducing nitrogen leaching losses in grazed dairy systems using an Italian ryegrass‐plantain‐white clover forage mix. Grass Forage Sci. 73(4):878-887. 10.1111/gfs.12386
Information
  • Publisher :Korean Society of Soil Science and Fertilizer
  • Publisher(Ko) :한국토양비료학회
  • Journal Title :Korean Journal of Soil Science and Fertilizer
  • Journal Title(Ko) :한국토양비료학회 학회지
  • Volume : 53
  • No :4
  • Pages :677-686
  • Received Date : 2020-10-12
  • Revised Date : 2020-11-20
  • Accepted Date : 2020-11-25
  • DOI :https://doi.org/10.7745/KJSSF.2020.53.4.677
